Description

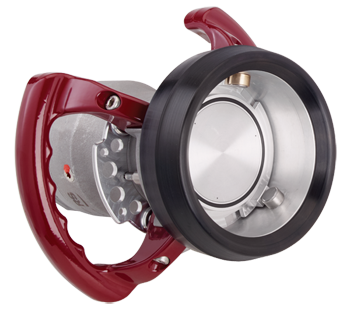

HDC-CPL 3" Aluminum Dry Release Coupler
Specifications
| Size/Type | 3" |
|---|---|
| Socket Size | 119mm |
| Connection | BSP ISO 228-G3 |
| Overall Length | 232.5mm |
| Weight | 4.1KG |
| Max Operating Pressure | 16BAR/232PSI |
| Min/Max Operating Temperature | -40C to +150C |
| Body Material | AL |
