Description

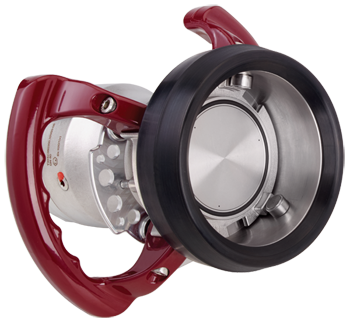

HDC-CPL 3" SS 316L Dry Release Coupler
Specifications
| Size/Type | 3" |
|---|---|
| Socket Size | 119mm |
| Connection | BSP ISO 228-G3 |
| Overall Length | 232.5mm |
| Weight | 8.7KG |
| Max Operating Pressure | 25BAR/363PSI |
| Max Connection Pressure | 25BAR/363PSI |
| Min/Max Operating Temperature | -40C to +150C |
| Body Material | SS 316L |
