Description

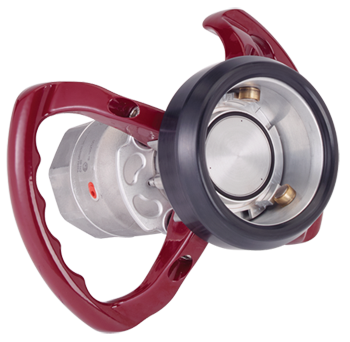

1.5" Aluminum Dry Release Coupler
Specifications
| Size/Type | 1.5" |
|---|---|
| Socket Size | 70mm |
| Connection | BSP ISO 228-G2 |
| Overall Length | 168mm |
| Weight | 1.3KG |
| Max Operating Pressure | 25BAR/363PSI |
| Max Connection Pressure | 25BAR/363PSI |
| Min/Max Operating Temperature | -40C to +150C |
| Body Material | AL |
