Description

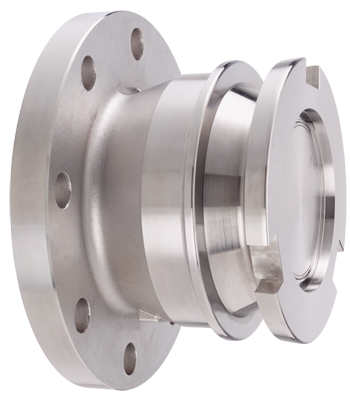

HDC-ADF 4" Stainless Steel Dry Release Flanged Adapter
Specifications
| Size/Type | 4" |
|---|---|
| Socket Size | 164mm |
| Connection | ANSI B 16.5 2" Class 150 |
| Overall Length | 134mm |
| Weight | 11.2KG |
| Max Operating Pressure | 25BAR/363PSI |
| Max Connection Pressure | 25BAR/363PSI |
| Min/Max Operating Temperature | -40C to +150C |
| Body Material | SS 316L |
