Description

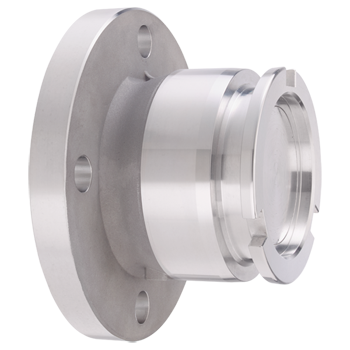

HDC-ADF 3" Aluminum Dry Release Flanged Adapter
Specifications
| Size/Type | 3" |
|---|---|
| Socket Size | 119mm |
| Connection | ANSI B 16.5 2" Class 150 |
| Overall Length | 112mm |
| Weight | 2.9KG |
| Max Operating Pressure | 16BAR/232PSI |
| Max Connection Pressure | 16BAR/232PSI |
| Min/Max Operating Temperature | -40C to +150C |
| Body Material | AL |
