Description

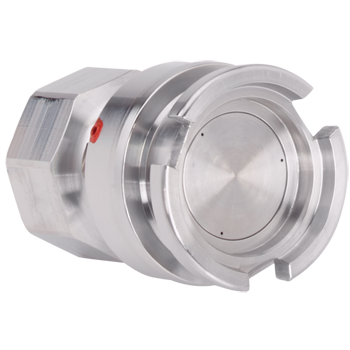

HDC-ADP 1" Stainless Steel Adapter 316L
Specifications
| Size/Type | 1" |
|---|---|
| Socket Size | 65mm |
| Connection | BSP ISO 228-G1 |
| Overall Length | 68.5mm |
| Weight | 0.52KG |
| Max Operating Pressure | 25BAR/363PSI |
| Max Connection Pressure | 25BAR/363PSI |
| Min/Max Operating Temperature | -40C to +150C |
| Body Material | SS 316L |
